Start a Watch Strap Metallic Manufacturing Plant







 (204) Start a Watch Strap Metallic Manufacturing Plant

There are many types of Watch Straps, made of Leather, Nylon, Stainless Steel and Brass etc. Watch straps are made in various designs including ornamental one, being used by the public now a days. In this Project Profile, it is intended to manufacture stainless steel watch straps out of stainless steel sheet scrap and wire. Since the scrap of required gauge is easily available from the manufacturers of stainless steel utensils, it is comparatively more profitable than manufacturing these items out of virgin stainless steel sheets or coil. Introduction

Market Potential
Wrist watch has become necessity for the present day life of human beings. It is being used by people from all walks of life, male, female, educated, uneducated, young and old etc. Watch strap being an integral part of wrist watch, it has a good market for supply to meet original demand and in the replacement market. Apart from the large scale wrist watch manufacturers, such as Titan, HMT, Maxima, Allwyn, Timex etc., a good number of small scale units in many States have also come up with their phased production programme for wrist watches. The demand for the production of the item is therefore likely to increase rapidly in near future. Further, due to durability of the product it is preferred over all other types of straps.

Moreover, due to fast changes in the design and liking of people, there is good replacement prospects for the product as well. Therefore, there is a good and assured future for the product.
Basis and Presumptions
(i) This report is worked out on 75% capacity utilization, on double shift and 300 working days per year.

(ii) The machinery and equipment are of standard make.

(iii) The cost of raw materials and other expenditure is approximate and based on current market rates.

(iv) The period for achieving envisaged capacity utilization estimated to be one year after commencement of trial production.

(v) Interest rate for fixed and working capital has been calculated at 12% per annum.

(vi) Pay back period would commence after a period of 12 months and the repayment period is estimated as 3 years.
Implementation Schedule
1. The entrepreneur has to arrive at a decision in order to select this product. The guiding factor in this regard would be the market potential, demand and supply gap and availability of resources. It may take 2 to 3 weeks.

2. After selecting the product, the entrepreneur has to get provisional registration from DIC, so that he can apply for allotment of land, power, etc.
3. In order to obtain financial assistance from the financial Institutions like Commercial Banks or State Financial Corporations, a detailed project report is required to be prepared. On the basis of the report financial Institutions may take 8 to 10 weeks' time for sanctioning and disbursing the loan. Accordingly, orders for plant and machinery may be finalized and placed. Simultaneously, orders for purchase of raw materials are also to be finalized and recruitment of key staff is to be done. This would require 3 to 4 weeks.
4. The plant and machinery received may be installed and commissioned within 4 to 6 weeks time and the Workshop staff should also be recruited. The production may be commenced after trial run of the installed plant and machinery.
Technical Aspects
Process of Manufacture

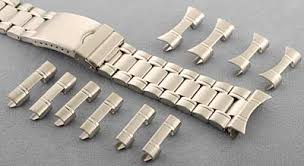

The Metallic Watch Straps consist of 7 to 8 components according to its design. These components are made by balaking, piercing, and binding as per the requirements, and then these components are sent for assembly to form a chain. These chain pieces are grounded to size on a surface grinder. Mat finish on the straps can also be given by using surface grinder. After mating, straps may be polished on a buffing lathe. Links, locks and barrels are fitted to these pieces with the help of spring loaded pins. Then these assembled straps are cleaned in kerosene oil to remove the luster particles. Finally, the final buffing is done to give polishing touch on straps. These straps are packed suitably and marketed.
Quality Control and Standards

Most of the watch manufacturers like Titan, HMT, Alwyn, Maxima, Timex etc., have formulated their own specifications and design for this product, and these may be obtained from them for supply to them. However, in view of sophistication and individual liking the appearance of the straps must be good and have free link movement and reliable locking system along with appropriate polish.
Production Capacity (per annum)
Quantity60000 nos.
ValueRs 4776000

Motive Power15 HP.
Pollution Control
The activity does not create any pollution. However, proper ventilation is provided for safe working conditions.
Energy Conservation
General awareness is required for energy conservation.
Financial Aspects
A Fixed Capital
(i) Land and BuildingAmount
(In Rs.)
(i) Land 400 sq. mtr. @ Rs. 6000 per sq. mtr including registration2400000
i) Cost of land development, fencing, approach road, inside roads, land scaping, drainage etc. @ Rs. 1000 per sq. mtr.400000
(iii) Total built-up area 300 sq. mtrs.@ Rs 5000/- sq Mtr1500000
Water System (including Bore Well + over head tank etc)100000
Total civil cost= cost of land + building
4400000
(ii) Machinery and Equipment
Sl. No.DescriptionInd./ Imp.Qty. Nos.Rate (Rs.)Total
(In Rs.)
1.Inclinable Power Press 10 Tonnes with 5 HP MotorInd.18000080000
2.Power Press with 2 HP Motor-do-24000080000
3.Bench Drill 12 mm cap. With 0.5 HP motor.-do-180008000
4.Buffing lathe with 1 HP Motor.-do-12000020000
5.Disc and Belt sand grinding Machine, 1200 mm x 150 mm with endless belt, titling type table and with 0.5 HP motor.-do-12000020000
6.Pedestal grinder 200 mm wheel dia. with 0.5 HP motor.-do-11000010000
7.Surface grinder, table size 550 mm x 200 mm with 1 HP motor.-do-16500065000
8.Work bench, Vice, Hand tools, Dies, Punches, Measuring tools etc.-do-L.S.-50000
9.Installation and Electrification @ 10% of the cost of Machines---33300
10.Office furniture and equipments.---80000
 Total   446300
(iii)Pre-operative Expenses---40000
Total Fixed Capital(i)+(ii)+(iii)4886300
B. Working Capital (per month)

(1) Personnel
Sl.No.DesignationNos.Salary (Rs.)Amount
(In Rs.)
1.Manager11500015000
2.Supervisor-Cum-Inspector180008000
3.Skilled Workers4600024000
4.Un-Skilled Workers4400016000
5.Clerk-cum-Accountant180008000
6.Peon130003000
7.Chowkidar/Watchman130003000
Total
77000
Additional perquisites @ 22%
16940
Total
93940
(ii) Raw Material
Sl. No.DescriptionQty.Rate (Rs.)Amount
(In Rs.)
1.Stainless Steel/Scrap 16/20/26/28/30 MT SWG1.860000108000
2.Spring Bars and Link Bars2165511880
3.Packaging Material Total 36,000L.S.-5000
Total
124880

(iii) Utilities(In Rs.)
Electric Power @ 5 per unit7000
Total
7000

(iv) Other Contingent Expenses(Rs.)
Transport and Cartage Charges5000
Postage and Stationery3000
Telephone3000
Publicity10000
Insurance/Taxes1000
Repair and Maintenance2000
Miscellaneous Expenses5000
Total
29000

(v) Total Recurring Expenditure (per month)
[(i) + (ii) + (iii) + (iv)]254820

(vi) Total Working Capital for 2 Months
2 × 254820509640
C. Total Capital Investment
1. Fixed Capital4886300
2. Working Capital (for 2 month)509640
Total
5395940
Financial Analysis
(1) Cost of Production (per year)(In Rs.)
Recurring Expenditure3057840
Depreciation on Building @ 5 %220000
Depreciation on Machinery and Equipments @ 10%33300
Depreciation on Office Furniture @ 20%16000
Interest on total capital investment @12%647513
Total
3974653
(2) Turnover (per year)
Sl. No.ItemQty.Rate (Rs.)Total (In Rs.)
1.Stainless Steel Watch Straps Nos. each60000784680000
2.Sale of Scrap4 MT2400096000
Total
4776000

(3) Net Profit (per year) (Before Taxation)

Profit=Turnover - Cost of Production
 =4776000 - 3974653
 =
801347

(4) Net Profit Ratio=Net Profit per year × 100
--------------------
  Turnover per year

 =801347 × 100
-------------------

4776000


 =
16.78

(5) Rate of Return=Net Profit per year × 100
---------------------------
  Total Capital Investment

  801347 × 100
---------------

5395940


 =
14.85
(6) Break-even Point
Fixed Cost(In Rs.)
Depreciation on Building @ 5 %220000
Depreciation on Machinery and Equipments @ 10%33300
Depreciation on Office Furniture @ 20%16000
Interest on total capital investment @12%647513
40% of Salary and Wages450912
40% of other contingent expenses139200
Total
1506925

B.E.P=Fixed Cost × 100
-----------------------
  Fixed Cost + Profit

 =1506925 × 100
-----------------------
  1506925 + 801347
 =65.28
Addresses of Machinery Equipment Suppliers

1. M/s. SARB Presses Pvt. Ltd.
P. No. 52, Sector–24,
Faridabad-121001 (Haryana)
2. M/s. Gurusharan Industries
920, New Colony,
Opp. Railway Station (Old),
Faridabad–121001 (Haryana).

3. M/s. Lefoot Machines Pvt. Ltd.
110 (N.P.), SIDCO Industrial
Estate, Ambattur, Chennai - 98.

4. M/s. Imperial Products of India
414–A, Industrial Area - II,
Chandigarh - 160002.

5. M/s. Atlas Works Pvt. Ltd.
S. No. 119, Ribbon Street,
Kolkata.

6. M/s. International Machine Tools Corporation
5 Bank Street,
P.O. Box No. 799,
Behind State Bank,
Fort, Mumbai - 400023.

Raw Materials Available in the Local Market
